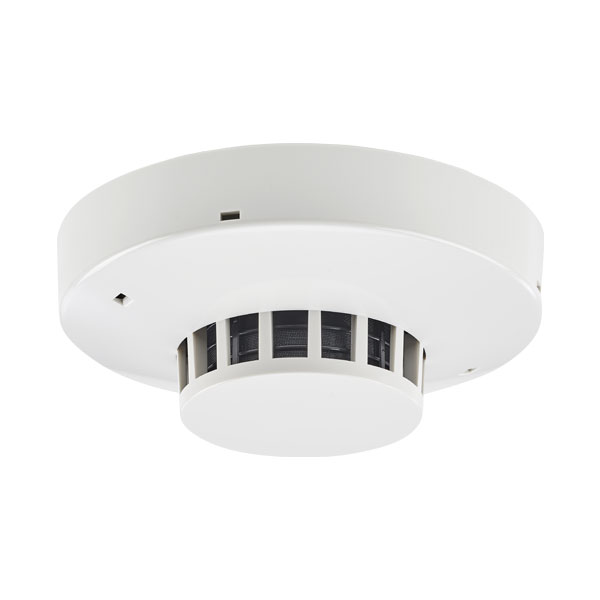

Conventional Photoelectric Smoke Detector
The photoelectric (optical) smoke detector has a low profile design. In the detection chamber is a high-efficient optical system consisting of an LED and a photodiode with two lenses. Scattered light (i.e. reflection of infrared light) is used to detect smoke. The latest IC technology is used to secure the highest reliability possible.
- Low profile design
- Latest IC technology / highest reliability
- Unleaded soldering
| Model Number: | 4452 |
| Voltage Primary: | 24VDC |
| Secondary/System Voltage: | 12VDC - 30VDC |
| Ambient Temp (C°) Operating Storage: | -10°C to +50°C |
| Ambient humidity (% RH): | max. 95, non condensing |
| Ingress Protection Rating (estimated): | IP 51 |
| Compliance: | AS7240.7:2004, ISO7240.7:2003 and EN54.7:2000+ A1:2002+A2:2006 13 EC Certificate no. 0786-CPD-21252 |
| Weight - (g): | 85 |
| Colour: | Grey (N8, Munsell colour code) |
| Construction: | Modified polycarbonate |
| Approvals: | AS7240.7:2004, ISO7240.7:2003 and EN54.7:2000+ A1:2002+A2:2006 13 EC Certificate no. 0786-CPD-21252 |
The detector is intended for indoor use and in dry premises. It is excellent to detect large, bright smoke particles as from a smouldering fire.
Used with FT420 and FT2FP Panels
