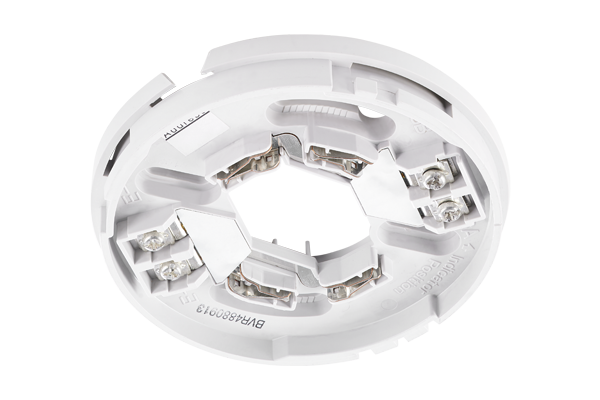

Analogue Detector Base
3312W
The analogue base 3312W is connected to a COM loop.
Analogue heat, smoke and multi detectors type 33xxW / 44xxW can be plugged in the base.
The base is intended for indoor use and in dry premises.
A label holder could be mounted in the base (in the label holder recess). The label holder is intended for a label showing "zone-address" or "technical number" information, which can be read also when the detector is plugged in the base.
- Common base for isolator detector
- Screw terminals for easy installation also with the thickest cables
- Possibility to connect to external indicator 4418
- Low profile - build height 6 mm
- Cable entry from top or side
- Recess for label holder
- CE
- Compliant with EN54-5 and EN54-7
| Model Number: | 3312W |
| Ambient Temp (C°) Operating Storage: | - 10 to +50 °C |
| Ambient humidity (% RH): | < 95% |
| Size H x W x D (mm): | Ø 102 x 15 |
| Weight - (g): | 59 |
