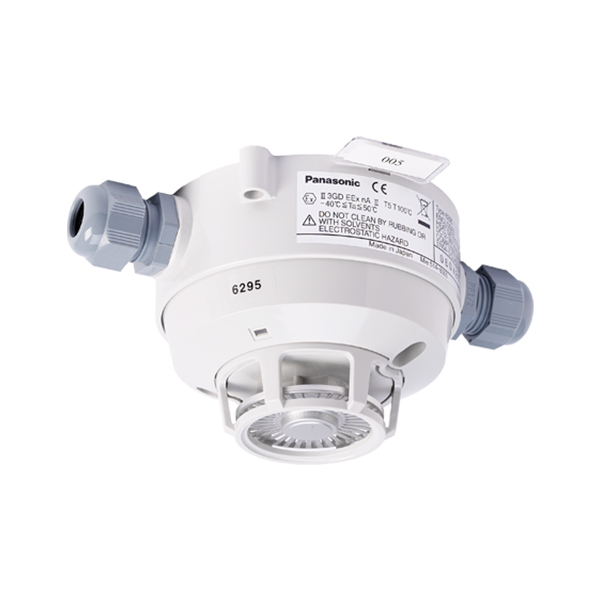

Enclosed Heat Detectors
The detectors are conventional fixed temperature heat detectors, i.e. they will give an alarm within a response temperature range in accordance with AS7240.5 The sensing element is a heat pick-up shield and a bimetal switch. An LED on the detector (not on 6298) will light up when the detector goes into alarm. The detector also has an output for an external LED.
- Fixed temperature alarm level
- ATEX compliance
- Waterproof (IP67)
| Model Number: | 629X |
| Voltage Primary: | 12-30(V DC) |
| Secondary/System Voltage: | 24(V DC) |
| Ingress Protection Rating (estimated): | IP67 (attached connection box, silicon gasket and compression glands required) |
| Weight - (g): | Detector: 100 Connection box (incl. 3 glands): 134 |
| Colour: | Grey (N8, Munsell colour code) |
The detectors can be used in the systems firetracker FT512, FT128 and FT1020G3 provided with some zone line inputs for the system respectively (e.g. an 8 zones expansion board 1580 / 4580 input, an addressable zone interface 2226 / 2335 input, an addressable multipurpose I/O unit 3361 input, etc.). Heat detectors are normally used in rooms where the temperature can be expected to rise rapidly in case of a fire or places where smoke detectors cannot be used.
The detectors are intended for outdoor use or indoor use in high humidity premises.
