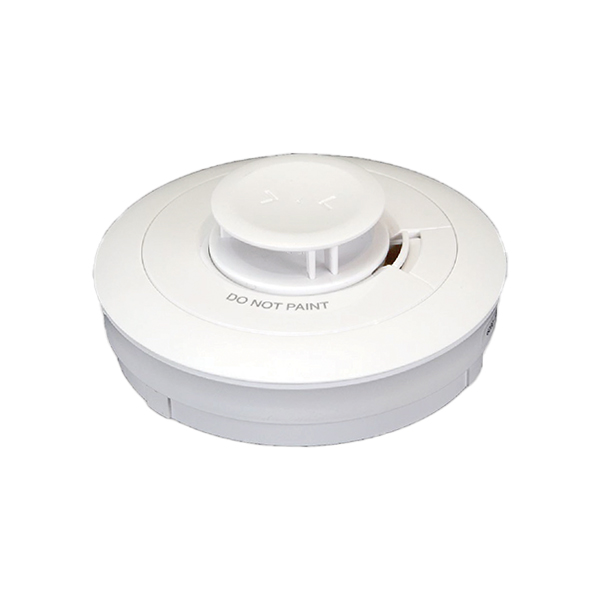

Heat Alarm Externally Powered for Residential Systems

The EIB603CX is an externally powered fixed temperature heat alarm, designed to be used with the Brooks range of Residential Fire Panels, when used in conjunction with a compatible interface base. Fixed temperature heat alarms are designed to trigger when the temperature reaches 58ºC. Heat alarms are not sensitive to smoke which make them suitable for kitchens and areas where smoke alarms may be subjected to nuisance alarms. Heat alarms must only be used supplementary to smoke alarms.

  • Large easy to use Test/Hush button
  • Aesthetically pleasing, compact design
  • Easy to fit twist-on base – BAX16
  • Silence nuisance/false alarms
  • Conforms to AS1603.3:2018
  • 5 Year Guarantee (limited)
Model Number: EIB603CX
Ambient Temp (C°) Operating Storage: 4°C to 40°C
Ambient humidity (% RH): 15% to 95% relative humidity (non condensing)
Weight - (g): 200g
Warranty: 5 year (limited) warranty
Approvals: Conforms to: AS1603.3:2018

Suitable for use with the RFP6 and RFS1 Residential Panels when used in conjunction with a BAX16 interface base.
