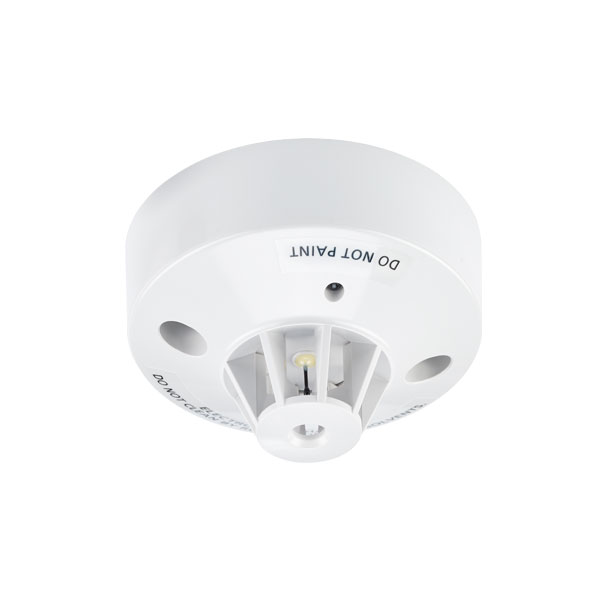

Intrinsically Safe analogue heat detector

The IS analogue heat detector 2841 is connected to the c.i.e. via an IS barrier unit 2842 (IS COM line) and programmed via Win128 / Win512 / WinG3 or EBLWin same as an Analogue heat detector 3308 i.e. it takes one COM loop address. The 2841 is a 3308 heat detector but with a different housing, IP rating etc.

The COM loop address is set in the detector with the address setting tool 3314/4414 in NORMAL mode. The alarm temperature is dependent on the selected alarm algorithm, i.e. same algorithms as for the 3308 detector. The detector has one built-in LED to indicate that the detector has generated a fire alarm. The detector can be mounted with or without the water-proof IS back-box 2843, which have two cable glands (½").
