Residential Systems Interface Base
The BAX16 Residential System Interface Base provides the interfacing capability to connect either the EIB650iWX or EIB603CX to the RFS and RFP Residential Fire Systems. The interface base is connected to the respective alarm via a 10-Way ribbon cable which plugs in the connector allocated for the wireless modules in the standard Alarms.
- RIL terminals is provided to drive one BARIL.
- Upon system initialisation, the SUB1012 automatically detects Alarm head type whether it is smoke EIB650iWX or heat EIB603CX.
- Only one interface board for both Alarms.
- System type is selectable via DIP switch i.e. select RFP6 or RFS1 system.

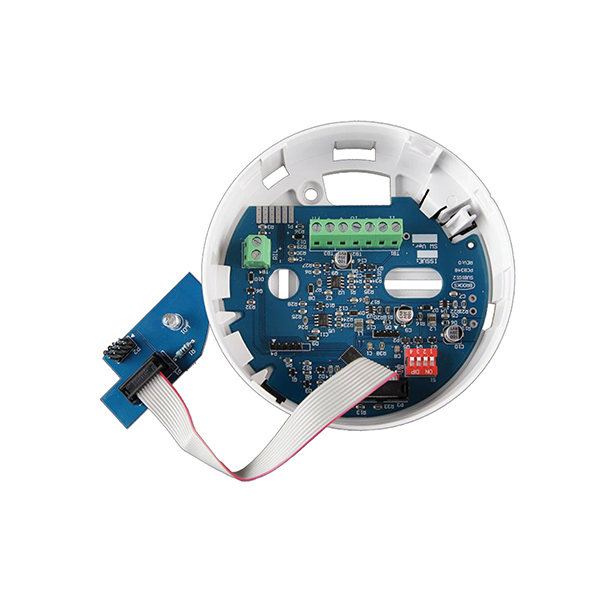

- Interface board supplied complete with the adapter board and ribbon cable, all fitted in the extended plastic base.
| Model Number: | BAX16 |
| Ambient Temp (C°) Operating Storage: | 0°C to 40°C |
| Ambient humidity (% RH): | 15% to 95% relative humidity |
| Warranty: | 5 year (limited) warranty |
| Approvals: | Conforms to: AS3786:2014 as part of the EIB650iWX |
Suitable for use with RFS and RFP Residential Systems when connected to either the EIB650IWX or EIB603CX.
