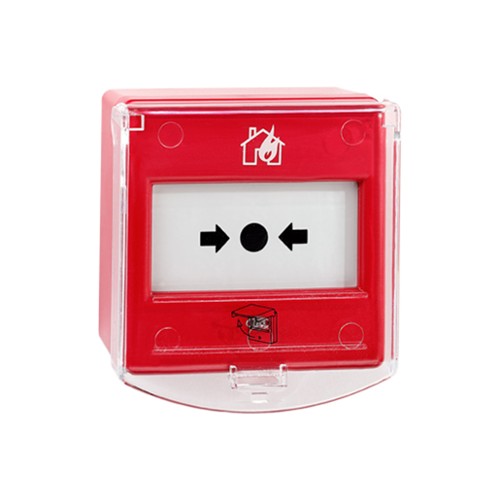

Addressable Manual Call Point with Isolator
The manual call point (m.c.p.) has an attractive design compliant with EN54-11, and is either surface mounted in the supplied red back-box. To operate the m.c.p. the frangible element is pressed until it is broken. This will activate the built-in microswitch, which will generate a fire alarm in the c.i.e. The frangible element is easily replaced. The m.c.p. also has a built- in short-circuit isolator.
- Attractive design compliant with EN54-11
- Test key for routine testing without breaking the fangible element
- Built-in short-circuit isolator
- Protection against accidental operation
| Model Number: | 4433 |
| Ambient Temp (C°) Operating Storage: | -10 to +55 |
| Ambient humidity (% RH): | max. 90, non condensing |
| Ingress Protection Rating (estimated): | IP42 |
| Weight - (g): | M.c.p. 140 / Back-box 60 |
| Approvals: | CE: 13 EC Certificate no. 0786-CPD-21235, EN54-11:2001 + and EN54-17:2005 + AC:2007 |
Used in the systems FT128 / FT512 / FT1020G3 and is intended for indoor use in dry premises.
