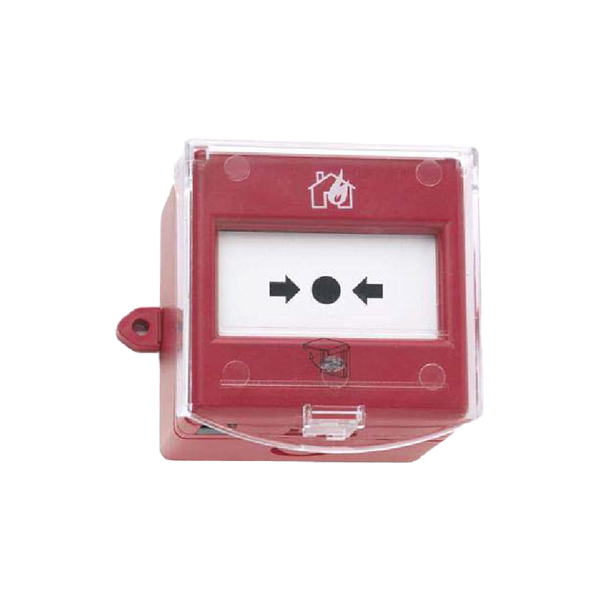

Enclosed Addressable Manual Call Point with Isolator
The manual call point (m.c.p.) has an attractive design compliant with EN54-11, and is surface mounted in the supplied red back-box. To operate the m.c.p. the frangible element is pressed until it is broken. This will activate the built-in microswitch, which will generate a fire alarm in the c.i.e. The frangible element is easily replaced. The m.c.p. also has a built-in short-circuit isolator.
- Attractive design & Built-in short-circuit isolator. IP rating IP56
- Test key for routine testing without breaking the frangible element
| Model Number: | 4439 |
| Ambient Temp (C°) Operating Storage: | -25 to +70 |
| Ingress Protection Rating (estimated): | IP56 |
| Weight - (g): | 235 |
| Approvals: | C.E:13 EC Certificate no. 0786-CPD-21236, EN54-11:2001 + A1:2005 and EN54-17:2005 + AC |
Used in the systems FT128 / FT512 / FT1020G3 and is intended for indoor use in dry premises.
