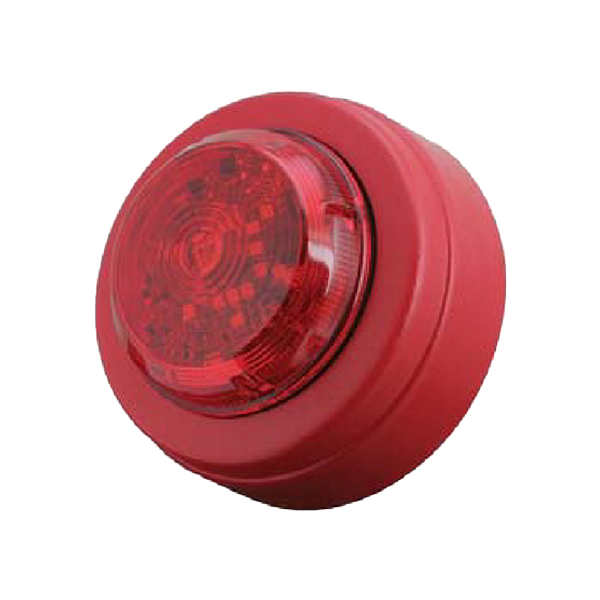

Addressable Beacon
The LED beacon is a visual alarm device (strobe) and normally used as a complement to audible alarm devices. It is of type A for indoor use. All electronics, the LEDs and the lens are mounted in a red ABS housing. The beacon comes with a shallow base (IP21C). A deep base 4382 is an option that gives the beacon a higher IP protection (IP33C). Both bases are with bayonet style detents and they have a locking screw. The COM loop is connected directly to the beacon via a 4-way screw terminal block (2 in / 2 out).
- Low current consumption thanks to LED Technology
- Swallow or deep base
- Connected directly on the COM loop
| Model Number: | 4380 |
| Ambient Temp (C°) Operating Storage: | -10 to +55 |
| Ambient humidity (% RH): | Max. 95, non condensing |
| Ingress Protection Rating (estimated): | Swallw base: IP 21C Deep base: IP 33C |
| Weight - (g): | 75 + 30 / 60 (beacon + swallow base / deep base) |
| Colour: | Red (ABS plastic case / box and PC lens) |
4380 is used in the firetracker systems FT128V2 (SW version ≥v2.x.x and FT1020G3. The beacon is intended for indoor use and in dry premises (if the deep base is not used).
