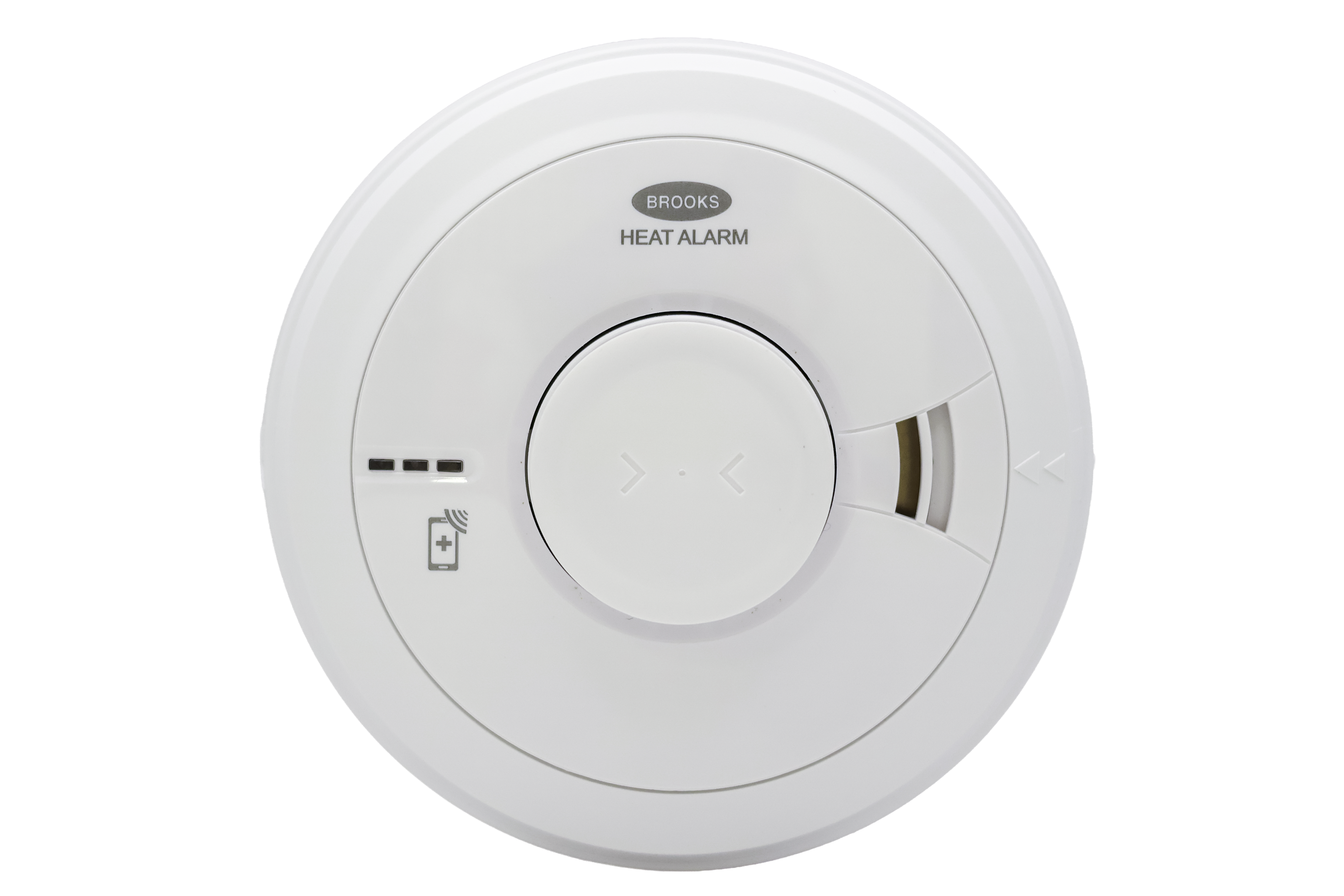

FA014 - Heat Alarm
The FA014 is a Class A1 Heat Alarm designed for rooms where smoke alarms cannot be installed due to the risk of excessive nuisance alarms.
The FA014 is powered by a 16Vdc main supply provided by Brooks FA40 Residential Control and Indicating Equipment (RCIE). FA014 must only be connected to an FA40 RCIE.
The FA014 includes a built in rechargeable 10-year non-removable lithium battery, that can power the unit for up to 6 months in the event of the 16Vdc supply failure.
- Fast acting Thermistor for Class A1 Heat detection
- Easy to use large Test / Silence button
- Memory function
- Energy efficient and low power consumption
| Model Number: | FA014 |
| Voltage Primary: | 16Vdc (ELV) |
| Ambient Temp (C°) Operating Storage: | -10°C to 40°C |
| Ambient humidity (% RH): | 15% to 95% RH (non-condensing) |
| Size H x W x D (mm): | 150mm x 66mm |
| Weight - (g): | 312g |
| Construction: | UL94VO flame retardant plastic |
| Warranty: | 5 Year (limited) Warranty |
| Approvals: | Designed to meet the requirements of AS 1603.3 2018 |
