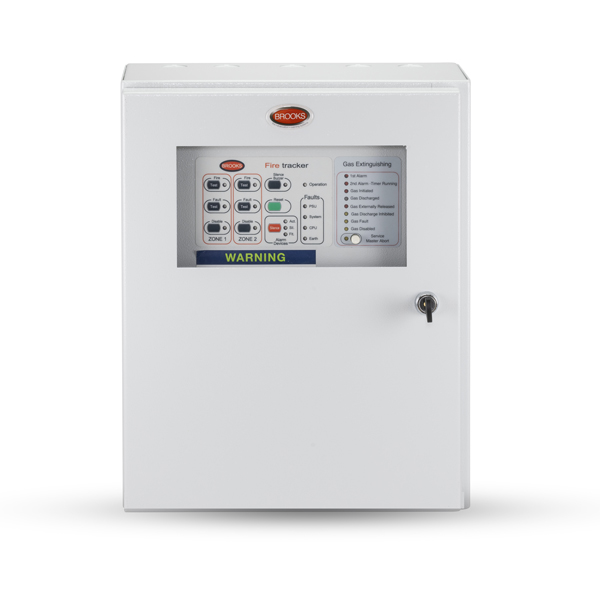

Gaseous Extinguishing System Control Panel
The Brooks GT2GAS comprises a 2-zone conventional CIE (AS7240.2) to which a plug-in dual zone gas control module is added. The combination of the FDCIE and plug-in gas module is designed to comply with the Detection, Actuation and Control Systems section of AS4214:2002 Gaseous Fire Extinguishing Systems.
The FT2GAS provides all inputs and outputs required for monitoring and control of a gaseous extinguishing system including the warning signs and local control station.
• Intelligent dual microprocessor system which combines both the two zone CIE functions and the dual zone gas control functions.
• Built-in dual power sources.
• The system maximum current capacity is 5A @ 27.5V DC.
• Adjustable gas release timer 0.2 – 90 seconds.
• Detection zone settings via built-in DIP switches.
• Compatible local control station, warning signs, strobes and sounders.
• Optional web server interface for Ethernet connectivity with web pages and email alerts.
| Model Number: | FT2-GAS |
| Voltage Primary: | 230V AC, +/- 20%, Wattage 150W (maximum 5 A @28V) |
| Secondary/System Voltage: | 2 x 12V sealed lead acid batteries 12 AH. The battery capacity is based on the system power supply calculations. Battery capacity may supply sufficient power for 96 hours in quiescent conditions and followed by 30 minutes in alarm. |
| Ambient Temp (C°) Operating Storage: | 0°C to +40°C |
| Ambient humidity (% RH): | 5-95%, non-condensing |
| Enclosure Material: | 1.5mm zinc anneal steel powder coated oyster |
| Ingress Protection Rating (estimated): | IP31 |
| Compliance: | AS7240.2:2004 AS7240.4:2004 AS4214:2002 amdt 1 |
| Size H x W x D (mm): | 400mm H x 320mm W x 165mm D |
| Weight - (g): | 12kg (without back-up battery) |
| Approvals: | AS7240.2:2004 AS7240.4:2004 AS4214:2002 amdt 1 |
