Fire Alarm Systems Web-Server

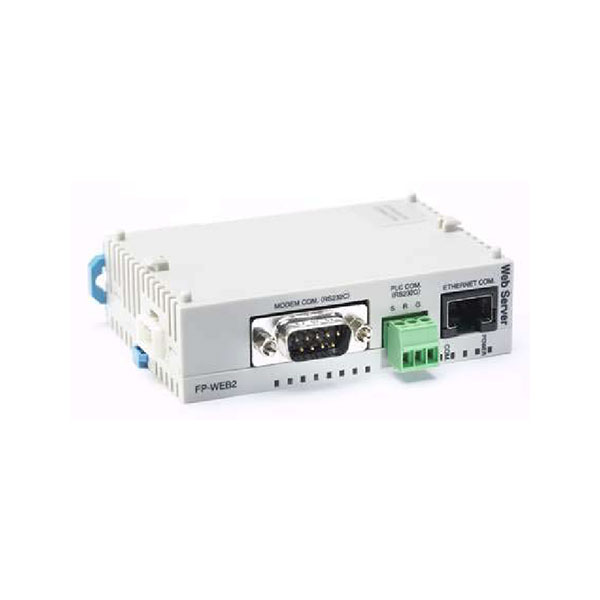

Web-Server II has a plastic cabinet, which is vertically mounted on a symmetric 35 mm DIN rail. Web-Server shall be mounted inside FT512 or FT128 cabinets. A cable and accessories kit for both systems is supplied with the Web-Server II.

  • Web-Server II, 1598; second WebServer generation
  • Increased memory and faster CPU
  • The same hardware can be used for the functions Web512, Web128 or OPC512
Model Number: 1598
Voltage Primary: 24 V DC
Ambient Temp (C°) Operating Storage: 0 to +55
Ambient humidity (% RH): Max. 85, non condensing
Ingress Protection Rating (estimated): IP20
Size H x W x D (mm): 90 x 25 x 69.5
Colour: plastic/light grey
Construction: ABS

Web-Server II 1598 is intended for indoor use and in dry premises. It can be used in systems FT512 and FT128 for c.i.e. status presentation. In system FT512, version > 2.5 also for remote control. In system FT512, version > 2.5 the web-server II can, as an alternative, be an interface to a Panasonic FP OPC Server.
