Loop Monitored 4 Amp External Power Supply

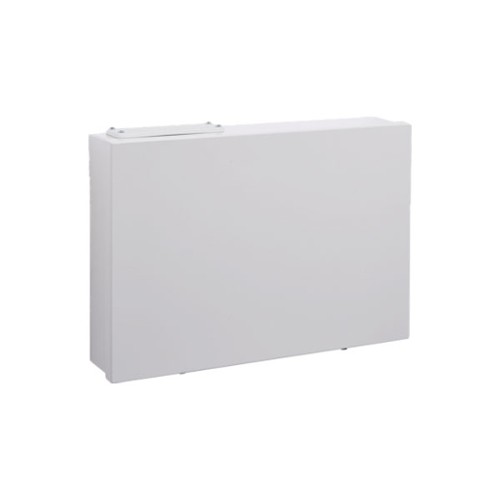

The Ext. power supply 3366 consists of a rectifier (the main power source) and a charger board mounted in a grey metal housing, which also has space for two maintenance-free sealed Lead-Acid backup batteries, rated 12 V, 6.5-7.5 Ah (the second power source). Larger batteries (up to 60 Ah) have to be placed outside the housing.
The unit is connected to a COM loop. It is monitored from the c.i.e. and e.g. loss of the main power source (230 V AC) will generate a fault in the c.i.e. There are cable inlets on the top, bottom and back sides of the housing and two compression glands are attached.
| Model Number: | 3366 |
| Voltage Primary: | 230 (V AC) |
| Secondary/System Voltage: | 24 (V DC) |
| Ambient Temp (C°) Operating Storage: | 0 to +40 |
| Ambient humidity (% RH): | Max. 90, non condensing |
| Ingress Protection Rating (estimated): | IP30 |
| Compliance: | AS7240.4 05 EC Certificate no. 0845-CPD-232.1491; EN54-4 |
| Size H x W x D (mm): | 288 x 400 x 95 |
| Weight - (g): | 4800 (excl. batteries) |
| Colour: | Light grey (NCS S1500-N, PMS Cool Grey 2) |
| Construction: | Metal housing |
| Approvals: | AS7240.4 05 EC Certificate no. 0845-CPD-232.1491; EN54-4 |
The 3366 unit is used in the Firetracker 128 & 512. and is used when an external power supply monitored from the c.i.e. is required.
