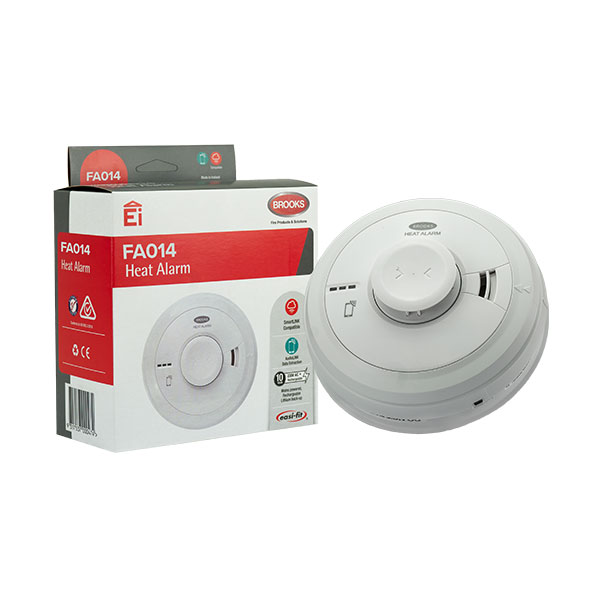

Heat Alarm
The FA014 is a Class A1 Heat Alarm designed for rooms where smoke alarms cannot be installed without the risk of excessive nuisance alarms like the kitchen, laundry, garage, etc.
The FA014 is powered by a 16Vdc main supply from the Brooks FA40/FA80 Residential Control and Indicating Equipment (RCIE). FA014 must only be used to connected to an FA40 / F80 RCIE
In the event the 16Vdc supply fails, the internal rechargeable 10-year built-in non-removable lithium, standby battery. The battery will power the FA014 for up to 6 months.
- Fast acting Thermistor for Class A1 Heat detection Easy to use large Test / Silence button
- Easy to use large Test / Silence button
- Memory function
- Energy efficient and low power consumption
- Firealert - Easi-fit base
| Model Number: | FA014 |
| Voltage Primary: | 16Vdc |
| Ambient Temp (C°) Operating Storage: | -10°C to 40°C |
| Ambient humidity (% RH): | 15 % to 95 % RH (non-condensing) |
| Enclosure Material: | UL94VO flame retardant |
| Size H x W x D (mm): | Product - 150mm x 66mm Package - 180mm x 155mm x 72mm |
| Weight - (g): | 312g (Pack +66g) |
| Warranty: | 5 year (limited) warranty |
| Approvals: | Conforms to AS1603.3 2018 |
