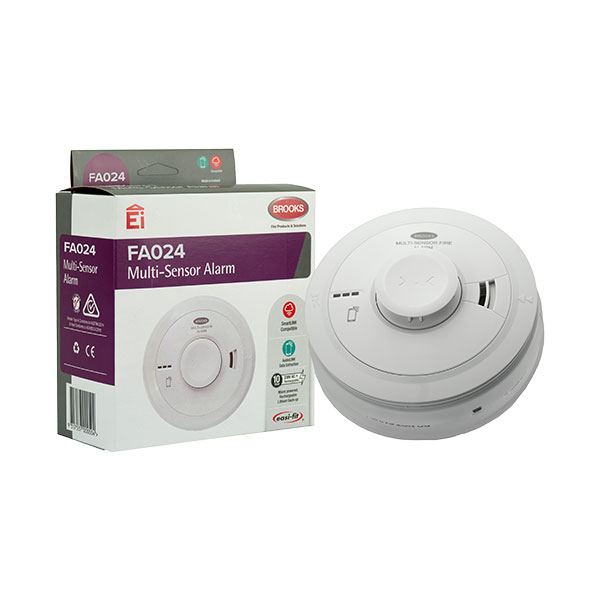

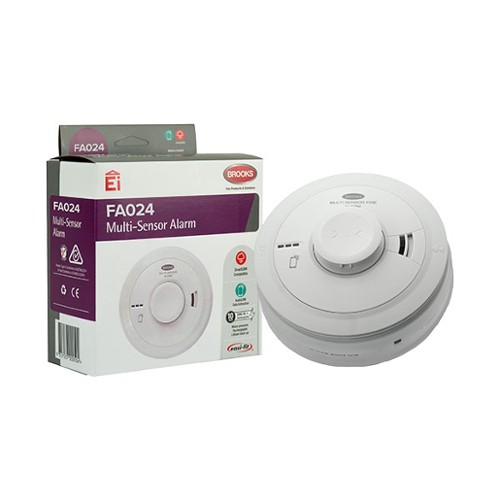

Multi-Sensor Alarm
The FA024 is a Multi-Sensor alarm incorporating a photoelectric smoke sensor and fast response thermistor heat sensor. The FA024 acts as both a combination alarm and multi- criteria alarm.
This dual sensor monitoring enables the FA024 to respond to all test fires (TF1 to TF6 & TF8) something not possible with a traditional single sensor alarm.
The FA024 is powered by 16Vdc main supply from the Brooks
FA40 /FA80 Residential Control and Indicating Equipment (RCIE). FA024 must only be used to connected to an FA40 / F80 RCIE.
Multi-sensor (smoke and heat)
Complies with all fire tests: TF1-TF6 & TF8
Automatic dust compensation
Easy to use large Test / Silence button
Memory function
Energy efficient and low power consumption
Firealert - Easi-fit base
| Model Number: | FA024 |
| Voltage Primary: | 16Vdc |
| Ambient Temp (C°) Operating Storage: | -10°C to 40°C |
| Ambient humidity (% RH): | 15 % to 95 % RH (non-condensing) |
| Enclosure Material: | UL94VO flame retardant |
| Size H x W x D (mm): | Product - 150mm x 66mm Package - 180mm x 155mm x 70mm |
| Weight - (g): | 346g (Pack +66g) |
| Warranty: | 5 year (limited) warranty |
| Approvals: | Conforms to AS3786 2014 / AS3786 2023 & AS1603.3 2018 |
