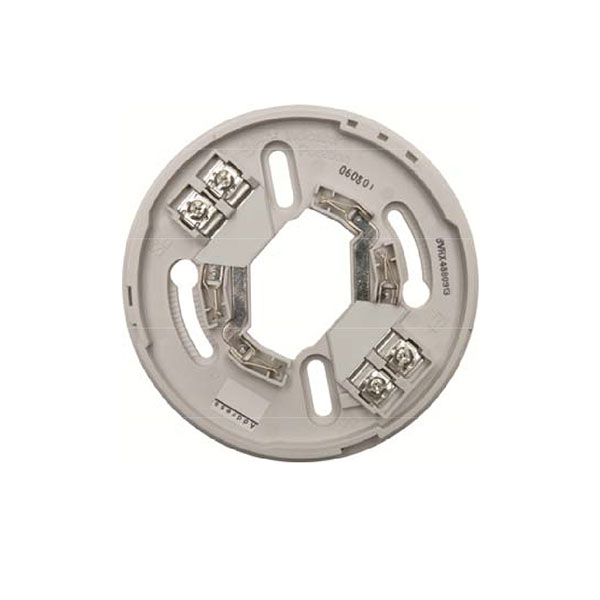

Analogue Base
The analogue base 3312 is connected to a COM loop. Analogue heat, smoke and multi detectors type 33xx / 44xx can be plugged in the base. (See Product Leaflet for the detector type respectively, for type of base.).
- Common base for the different analogue detectors
- Easy connections incl. output for external LED
- Label holder recess
| Model Number: | 3312W |
| Voltage Primary: | 24 (COM loop voltage) |
| Ambient Temp (C°) Operating Storage: | -10 to +50 |
| Ambient humidity (% RH): | max. 95, non condensing |
| Ingress Protection Rating (estimated): | IP51 |
| Compliance: | CE; Conforms with AS7240.5 and .7 |
| Weight - (g): | 52 |
| Colour: | Grey (N8, Munsell colour code) |
| Construction: | ABS |
| Approvals: | CE; Conforms with AS7240.5 and .7 |
Used in the systems Firetracker 1020G3 & 128V2. The base is intended for indoor use and in dry premises.
