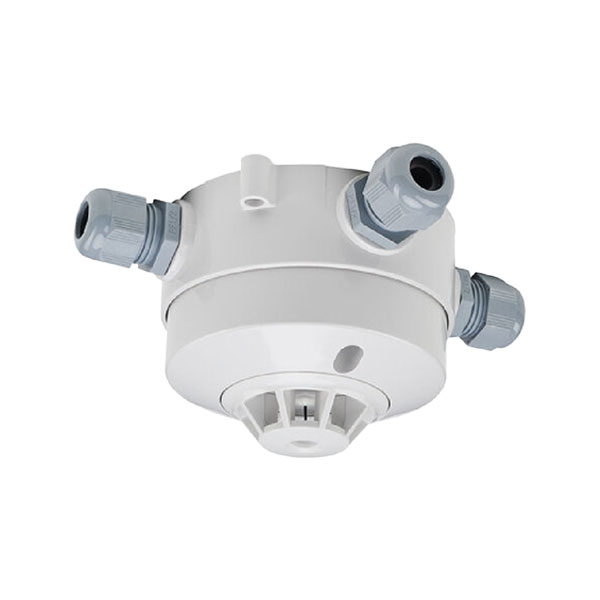

Enclosed Analogue Heat Detector (IP67)
4409 is a new IP67 analogue heat detector from Panasonic that includes only one red indicator to turn ON in case of fire alarm.
When a new 4409 with default address setting “000” is connected to a loop, 4409 red LED will be flashing once every second to indicate that the address has not been set.
409 must have its own unique address 001-253 set by address setting tool 4414.
- State of the art design for the highest safety and reliability
- Programmable with 3 heat categories: A1, A2 S and B S
- Conforms to AS7240.5:2018
- Waterproof housing IP67
- Can connect to external remote indicator
- Backward compatible with all Firetracker systems (normal mode)
| Model Number: | 4409 |
| Voltage Primary: | 24 VDC |
| Secondary/System Voltage: | 12 – 30.0 VDC |
| Ambient Temp (C°) Operating Storage: | A1: -20 / +25 / +50 ⁰C A2 S: -20 / +25 / +50 ⁰C B S: -20 / +40 / +65 ⁰C |
| Enclosure Material: | Modified Polycarbonate |
| Ingress Protection Rating (estimated): | IP67 |
| Compliance: | Conforms to AS7240.5:2018 |
| Colour: | White or Grey |
| Approvals: | Conforms to AS7240.5:2018 |
