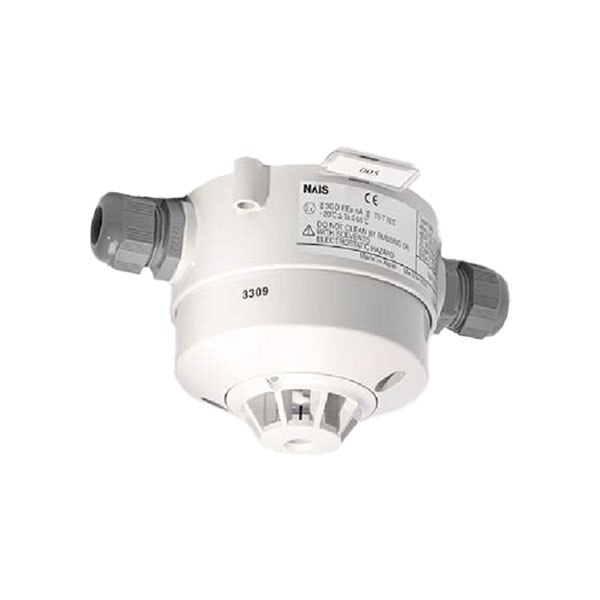

Enclosed Analogue Heat Sensor (IP67)
The analogue heat detector 3309 measures the temperature through a thermistor. The temperature range is 0°C to 100°C in steps of 0.5°C. The detector has an LED that will light up when the detector goes into alarm. The detector also has an output for an external LED.
- Different modes for compatibility with other Firetracker systems / detectors
- Algorithms for class A1,A2 S or B S
- ATEX compliance
- Waterproof (IP67)
| Model Number: | 3309 |
| Voltage Primary: | 24(V DC) |
| Ambient Temp (C°) Operating Storage: | NORMAL mode (Class is depending on the algorithm) |
| Ingress Protection Rating (estimated): | IP67 (attached connection box, silicon gasket and compression glands are required) |
| Compliance: | AS7240.5 05 EC Certificate no. 0845-CPD-232.1190 |
| Weight - (g): | 276 |
| Colour: | Grey (N8, Muncell colour code) |
| Construction: | Modified Polycarbonate |
| Approvals: | AS7240.5 05 EC Certificate no. 0845-CPD-232.1190 |
Used in the Firetracker 1020G3 & 128V2 systems. Heat detectors are normally used where smoke detectors cannot be used or in rooms where the temperature can be expected to rise rapidly in case of a fire.
The detector is intended for outdoor use (must not be exposed to heavy sunlight) or in high humidity indoor premises.
