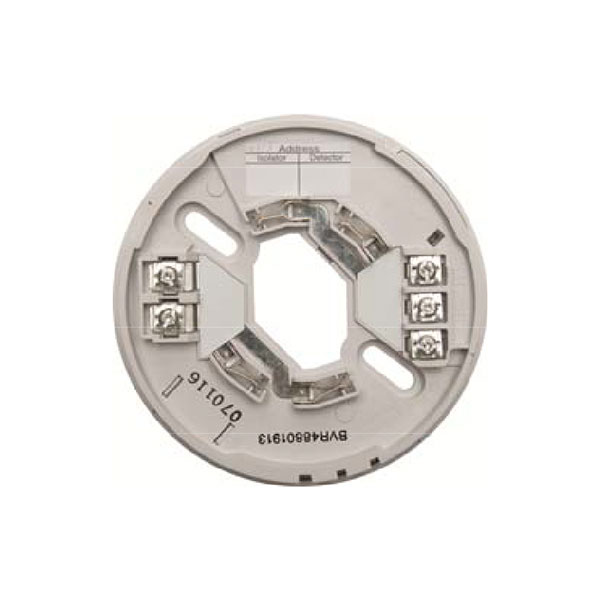

Short Circuit Isolator Base
The analogue base 4313 is connected to a COM loop. Any analogue heat, smoke and multi detector can be plugged in the base.
- Common base for the different analogue detectors
- Built-in short circuit isolator
- Easy connections including output for external LED (RIL)
| Model Number: | 4313W |
| Voltage Primary: | 24 (COM loop voltage) |
| Ambient Temp (C°) Operating Storage: | -10 to +50 |
| Ambient humidity (% RH): | Max. 95, non condensing |
| Ingress Protection Rating (estimated): | IP54 |
| Compliance: | AS/ISO 7240.2. |
| Weight - (g): | 80 |
| Colour: | Grey (N8, Munsell colour code) |
| Construction: | ABS |
| Approvals: | AS/ISO 7240.2. |
Used in FT1020G3 / FT128V2 systems to increase the COM loop safety.
The base is intended for indoor use and in dry premises.
