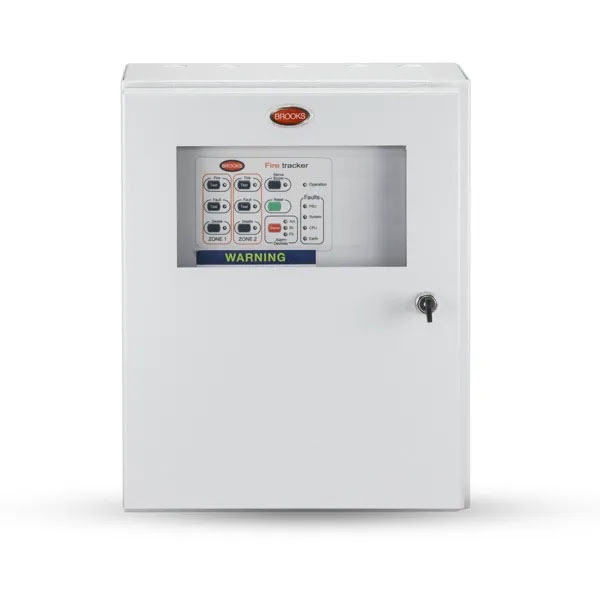

Conventional Panel - Firetracker Control 2-Zone

The Brooks FireTracker FT2FP 2 Zone Conventional was designed for smaller applications where the system is not required to be Fire Brigade connected or meet the conditions of AS1670.1. The FT2FP CIE, provides panel functions required by AS7240.2 & AS7240.4.

Features

The Brooks FireTracker Local Control Panel FT2FP consists of the following components:

2 x Fully Supervised Zone Input Circuits
Individual Zone Controls & Status Indication
Fully supervised 24V output for alarm devices rated @1A maximum and Disable Facility
Common Alarm dry-contact relay output rated @ 2A maximum.
Common Fault (Defect) dry-contact relay output rated @ 2A maximum.
Common Isolate dry-contact relay output rated @ 2A maximum.
Two user configurable programming dry-contact relay outputs rated @ 2A maximum.
Provision for connection of an optional Panasonic web server to provide Ethernet connectivity with web pages and email alerts.
