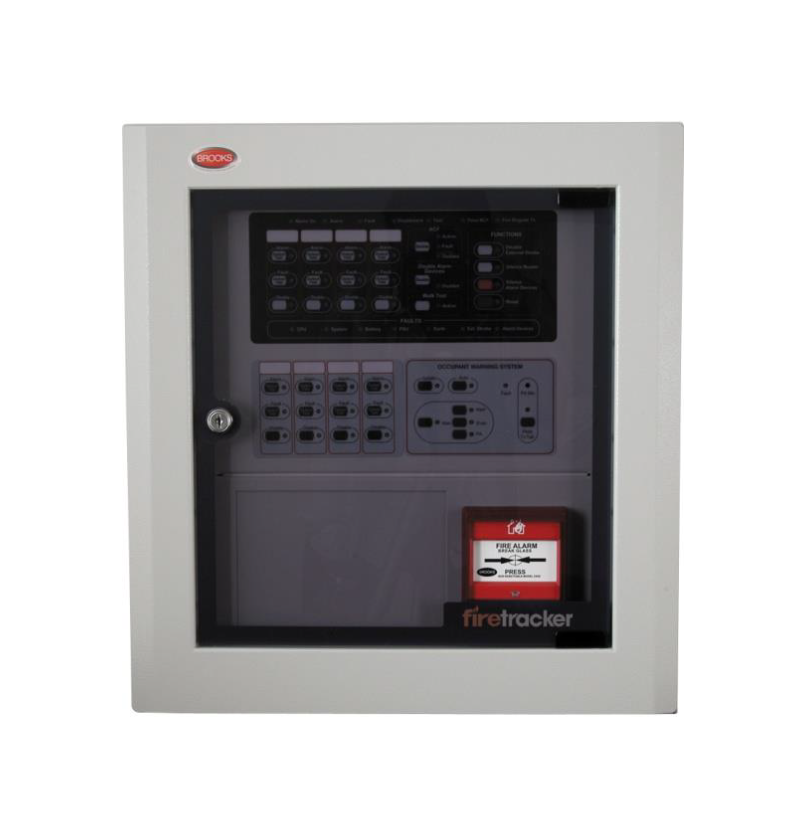

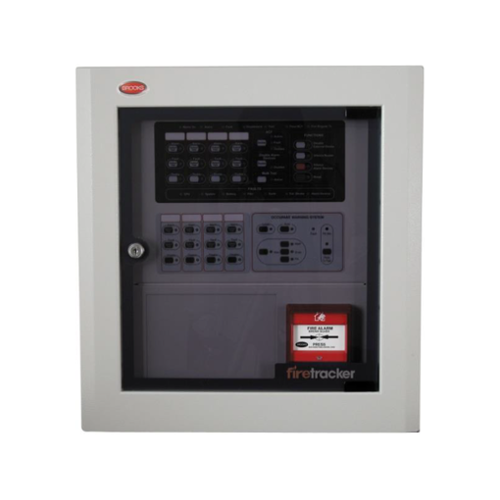

Conventional Panel - FireTracker FT420 Conventional CIE
Brooks Firetracker Conventional CIE, FT420, is a highly integrated, configurable, and flexible Fire Alarm Control Panel that complies with AS7240.2 and AS7240.4 standards. It has been tested and approved under the CSIRO ActivFire scheme. With correct configuration and installation, the product is suited to a wide range of applications that require reliable detection, occupant warnings, and ancillary control.
Features
The Brooks Firetracker FT420 Conventional CIE is highly integrated and flexible.
The basic FT420 system includes the following standard features:
• Four conventional zones for fire detection, sprinkler flow switches, MCPs or any compatible inputs
• Individual Zone Controls & Status Indication
• Panel mounted Manual Call Point (MCP)
• Supervised Alarm Devices output and Disable facility
• Supervised Ancillary Control Facility (ACF), independent control and indication
• Supervised External Strobe output and Disable facility
• A Magnetic Door Holder (MDH) circuit (control only)
• Walk Test facility
| Model Number: | FT420 |
By adding expansion boards, it is capable of providing within its architecture:
• Up to 20 conventional zones
• Occupant Warning System (OWS)
• Multiple supervised speaker circuits
• Multiple supervised 24V outputs
• Multiple clean contact outputs
