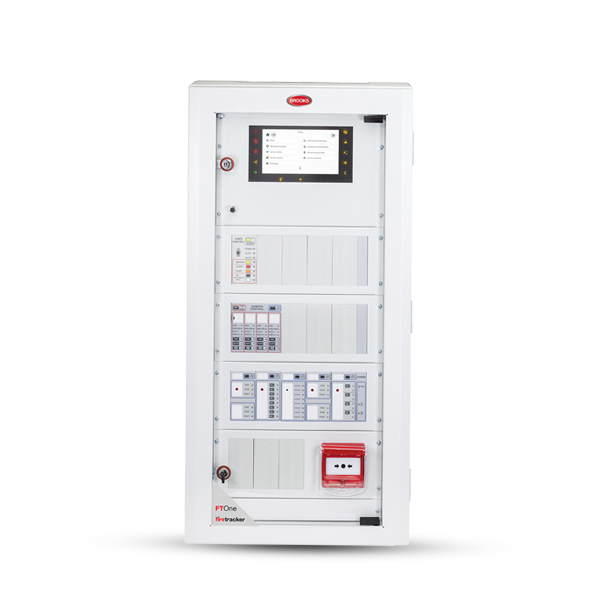

FTOne - One Loop Addressable Fire Indicator Panel - Firetracker
Brooks FTOne is the ideal choice for small and medium applications requiring a one-loop fire alarm system and state-of-the-art fire alarm technology. The system can be remotely monitored and operated securely and also very easily be connected to building management systems, all via an optional Gateway
- Single loop panel with up to 253 alarm points
- 7" colour touch screen
- App-based menu structure
- Programming via Touch Screen or EBLWin
- FTOne Setup Wizard for auto device addressing and
- system setup.
| Model Number: | FTOne |
| Voltage Primary: | 195V / 253V AC, 1.1A |
| Secondary/System Voltage: | 24Vdc @ 1.7A |
| Ambient Temp (C°) Operating Storage: | -5 to +40 ⁰C (indoor use only) -30 to +80 ⁰C |
| Ambient humidity (% RH): | Maximum 90, non condensing |
| Enclosure Material: | 1.5 Zinc anneal steel, powder coated Oyster, ripple finish |
| Ingress Protection Rating (estimated): | IP 30 |
| Compliance: | Conforms to AS7240.2-2018, AS7240.4-2018, and AS4428.3-2020 |
| Size H x W x D (mm): | Small :630 x 450 x 210 Large: 920 x 450 x 210 |
| Weight - (g): | 21kg -26kg, (Weights for both are dependant on configuration and excluding batteries) |
| Colour: | Oyster |
| Approvals: | Conforms to AS7240.2-2018, AS7240.4-2018, and AS4428.3-2020 |
-
5088 Gateway for Remote monitoring and control of FTOne.
-
120WS Intergrated Occupant Warning System, supporting 60 &
-
120 Watt Amplifiers (Large Enclosure Only)
-
SUB999B 4 x Audio Splitter Board
-
1204 - 1210 Supports Fan, Damper and Generic Display & Control Module
