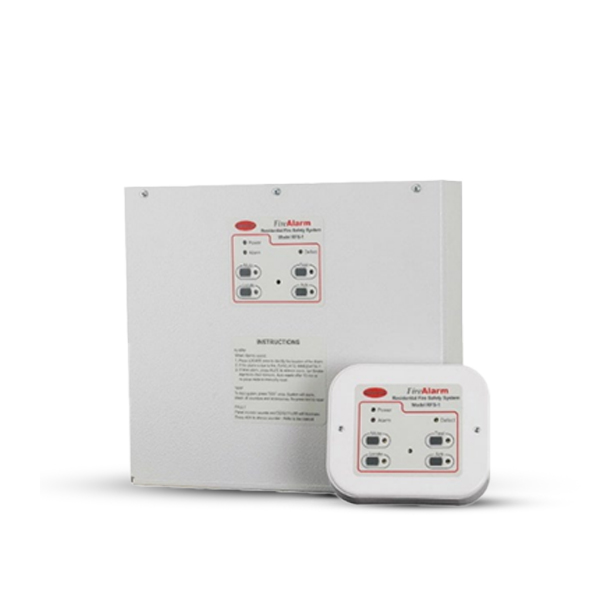

Residential Fire Panel BARFS1
The BARFS-1 Residential Fire Safety System, complete with compatible smoke/heat alarms and auxiliary devices, provides a complete single-zone automatic fire detection and alarm system for residential applications. The system is designed to meet the requirements of the Building Code of Australia - (Smoke Alarm System) and incorporates smoke alarms to Australian Standard AS3786 and heat alarms to Australian Standard AS1603.3. The BARFS-1 system consists of a control panel that provides status indication and function controls for the smoke and heat alarms. A pillow shaker and strobe are also available for the hearing impaired.
- Primary and Secondary Power monitored supplies
- One supervised circuit with discrimination between heat alarm / manual actuation and smoke alarm 15 Smoke/Heat Alarms, and or 15 MCP, Sprinkler Clean Contact, and or 3 Strobe Modules, and or 4 Vibration Patrice Modules
- Alarm Output - Supervised 12Vdc / 1A fused output, 1 set of changeover clean contacts
- Fault / Defect Output - 1 set of changeover clean contact
- Remote Keypad for status and panel control
- Control Switches
- Ack Silences panel buzzer during an active event
- Locate Silences all smoke / heat alarms except those that have activated
- Test activates all smoke / heat alarm sounders, vibration pad and strobes
| Model Number: | BARFS1 |
| Voltage Primary: | Input 85-264V AC, Output 15V DC adjustable to +/- 10%, Current 3 Amp @ 12 V DC |
| Secondary/System Voltage: | 12V/7AH) Sealed Lead Acid battery |
| Enclosure Material: | Powder coated 1.6 mm zink steel |
| Compliance: | Designed to meet the requirements of the Australian Standard AS3786-2014 and the Building Code of Australia (BCA). |
| Size H x W x D (mm): | 280mm X 305mm X 75mm |
| Approvals: | Designed to meet the requirements of the Australian Standard AS3786-2014 and the Building Code of Australia (BCA). |
- Devices per Circuit- 15 Smoke/Heat Alarms, and or 4 output devices, confirmed by battery calculation.
