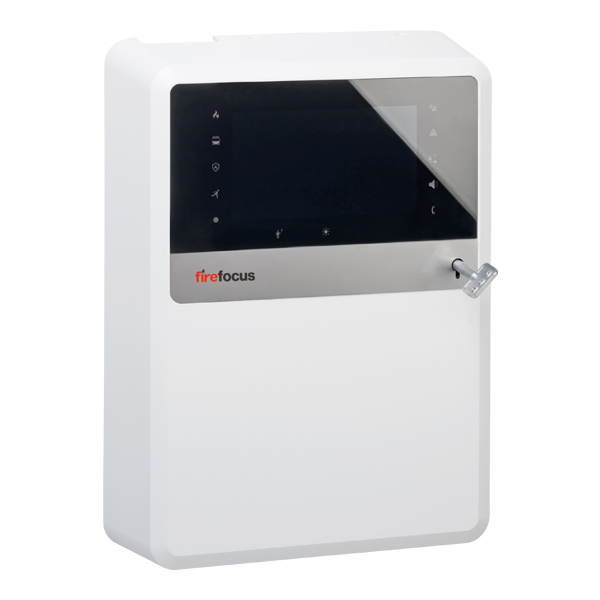

Firefocus
Brooks Firefocus is the ideal choice for small and medium applications requiring a one-loop fire alarm system and state-of-the-art fire alarm technology. The system can be remotely monitored and operated in a secure way and also very easily be connected to building management systems, all via an optional Gateway.
- Single loop panel with up to 253 alarm points
- 7" colour touchscreen
- App-based menu structure
- Programming via Touch Screen or EBLWin
- Firefocus Setup Wizard for auto device addressing and
- system setup.
| Model Number: | FIREFOCUS |
| Voltage Primary: | 230V AC (195 - 253) 1.1 A, 50 Hz 24V DC |
| Secondary/System Voltage: | 22.0 – 25.0V (Max ripple 300 mVp-p) |
| Ambient Temp (C°) Operating Storage: | 5 to +40 °C (indoor use only) -30 to +60 °C |
| Ambient humidity (% RH): | Maximum 95 % RH (Noncondensing) |
| Size H x W x D (mm): | 22 x 310 x 122 mm |
| Weight - (g): | 4KG |
| Colour: | Oyster |
| Approvals: | AS7240.2-2018, AS7240.4-2018, and AS4428.3-2020 |
